❑ i3/i5 11 generation CPU provide powerful performance ；
❑ Die-cast aluminum housing for high reliable；
❑ With compact footprint and sleek design elements；
❑ Carries the full suite of multiple ports: USB2.0&USB3.0, Serial, Cash Drawer
and Network LAN；
❑ Low-Profile, foldable base, Multiple Height Adjustments and VESA mount
Capability；
❑ i3/i5 11 generation CPU provide powerful performance ；
❑ Die-cast aluminum housing for high reliable；
❑ With compact footprint and sleek design elements；
❑ Carries the full suite of multiple ports: USB2.0&USB3.0, Serial, Cash Drawer
and Network LAN；
❑ Low-Profile, foldable base, Multiple Height Adjustments and VESA mount
Capability；
❑ Dual hinge for flexible
adjustment
❑ Die-cast aluminum housing for
high reliable
❑ Optional MSR
❑ Optional MSR+RFID
❑ Optional Fingerprint reader

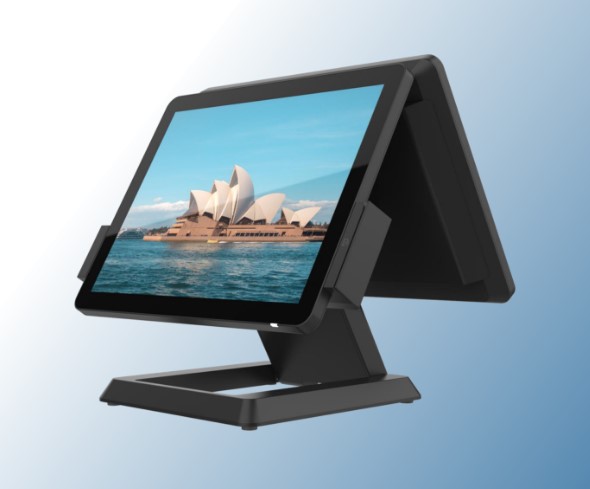

❑ Optional 15” second display

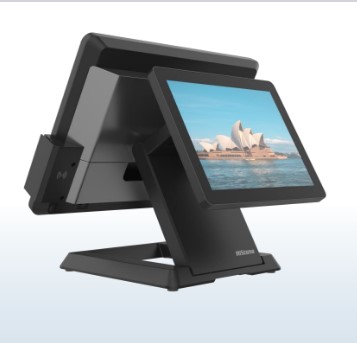

❑ Optional 10.4” second display

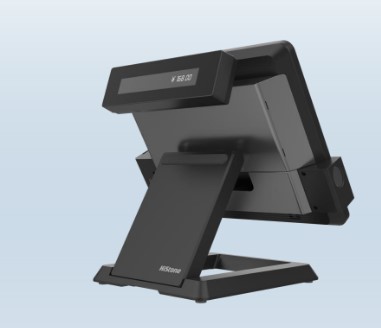

❑ Optional VFD
| MODEL | HK578U |
| Processor | Intel Tiger Lake UP3, Intel 11th Gen CPU : Core i3 11gen Optional : Core i5 11gen |
| Operating System | Windows 10/Linux/Windows 11 in 2023 |
| Memory | SO-DIMM DDR4 3200MHz 4GB, up to 16GB |
| Storage | 2.5inch SATA SSD 128GB, up to 512GB M.2 drive 128GB, up to 512GB |
| Display Panel | 15” TFT LCD (LED back light) /4:3 /resolution: 1024 × 768 |
| Touch Screen | True flat capacitive touch screen |
| Power Supply | 24V 60W (standard); 24V 90W/120W (for 80mm printer) |
| Speaker | 2*3W Speaker |
| I/O Ports | 7*USB: 2* USB 3.0; 5* USB 2.0 (included 1*24V Powered USB) 3* RJ50 COM Ports 1* RJ45 100M/1000M Gigabit LAN 1* HDMI for second display 1* 24V Power-in 1* 12V DC Output for second screen 1* Audio,3.5mm 1* 24V RJ11 for Cash drawer |
| Dimensions (LxWxH) | 349x252x332 mm |
| Weight | 5kg |
| Optional Peripherals | Card Reader: MSR only (3 tracks MSR), MSR+RFID (Supports MIFARE one and MIFARE CPU card) Fingerprint reader: Fingerprint reader Stand: Normal Desktop Stand Wall Mount: Wall mount bracket Second display: 15” second screen / resolution: 1024*768 (Touch/non-Touch) 10.4” second screen / resolution: 800*600 (Touch/non-Touch) 2×20 characters VFD Wireless: Dual-band Wi-Fi® 802.11a/b/g/n/ac 2.4GHz/5GHz, BT5.0 |
| Environment | Operating: 0ºC – 40ºC / 20%-80% RH non-condensing Storage: -20ºC – 60ºC / 10%-90% RH non-condensing |
| EMC and Safety | FCC / CE / RoHS pending |
| Tilt Adjustment | Single display: 0-150° (Vertical) Dual display: 0-45° (Vertical) |
| Colour | Dark Gray |
