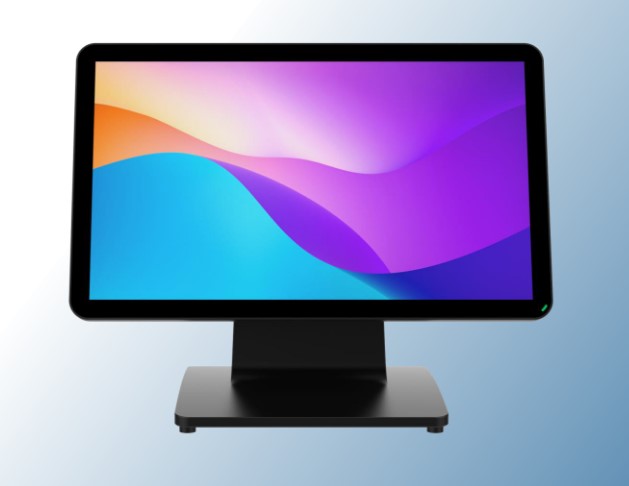

❑ 15.6-inch widescreen monitor, thin and sleek appearance
❑ True Flat Capacitive touch layer or non-touch version;
❑ Lower Power Consumption；
❑ 15.6-inch widescreen monitor, thin and sleek appearance
❑ True Flat Capacitive touch layer or non-touch version;
❑ Lower Power Consumption；

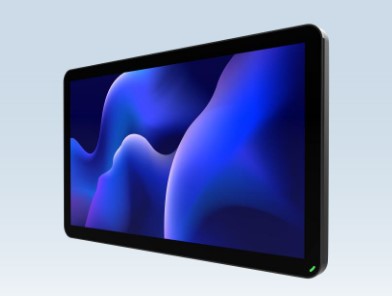

❑ 15.6” screen with bezel free
design
❑ Cable cover for better cable
management
| MODEL | MD15HW |
| Case/Bezel Color | Black/White |
| Display Ratio | 16:9 |
| Screen Type | 15.6 inch TFT-LCD |
| Backlight Type | LED |
| Active Display Area | 344.16mm(H) × 193.59mm(V) |
| Native Resolution | 1920*1080 |
| Pixel Response Time | 30ms |
| Colors | 16.7M |
| Luminance | 250nits |
| Contrast Ratio | 800 |
| Viewing Angle(cr≥10) | Horizontal:170°(85°/85°); Vertical:170°(85°/85°) |
| Pixel arrangement | RGB Vertical stripe |
| Backlight Lamp Life | 15000 (Hours To 1/2 Brightness) |
| Touch Technology | Projected Capacitive Touch (P-Cap) |
| Active Touch Area | 350.66mm (H) × 205.84mm (V) |
| Light Transmission | ≥85% |
| Surface Hardness | ≥7H |
| Touch Screen Interface | USB |
| Glass Type | Tempered |
| Mounting Options | VESA : 75x75mm |
| Outline Dimensions(mm) | 377*226*40 (no base)/ 377*291*190 (with base) |
| Weight | 1.5kg (no base)/ 2.7kg (with base) |
| Power Supply | External Adapter: 100-240 VAC, 50-60 Hz Input Voltage Range: +12VDC ± 5% ; 40W |
| On Screen Display (OSD) | Control(back): Power, Auto, Up, Down, Menu |
| Power Consumption | ≤40W |
| Speaker | 1X 3W |
| IO Ports | 1*USB-B 1* 12V power-in 1*HDMI |
| Operating Environment | 0°C – 40°C / Humidity: 40%-90% RH non-condensing |
| Storage Environment | -20°C – 60°C; Humidity: 10% to 90% (Non-condensing) |
| Input Video Signal Connector | HDMI |
| EMC & Safety | CE/FCC/ROHS |
