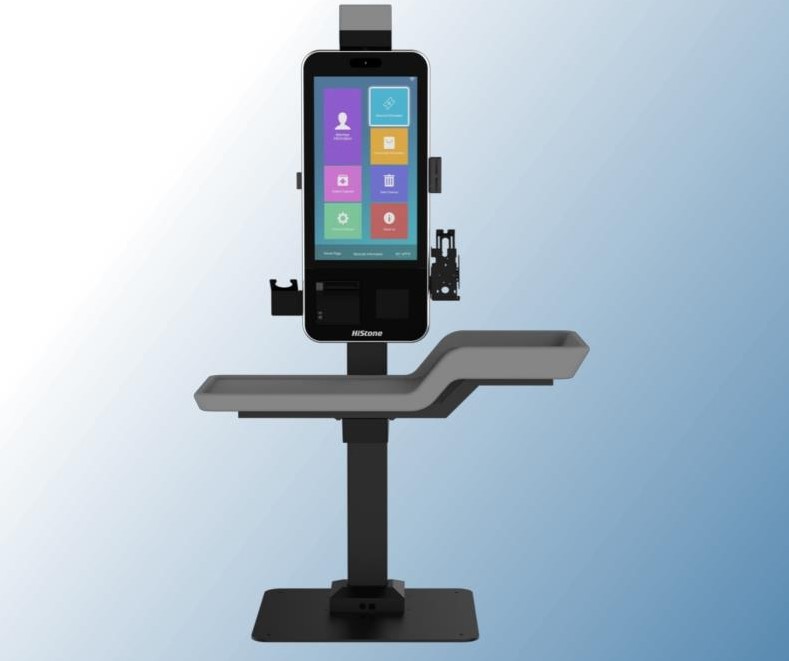

Self-Service Kiosk | Vision S | HS330U

23.8″ True flat capacitive touch screen enhancing user experience
Core i3/i5 11generation CPU bring powerful performance
Membership camera/Facial payment camera makes transactions easier

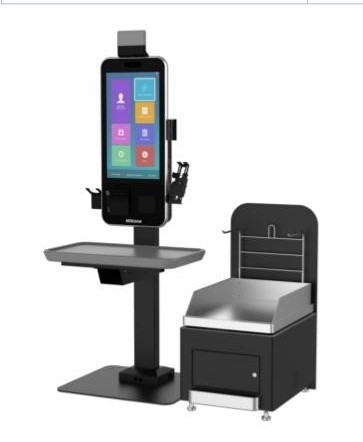

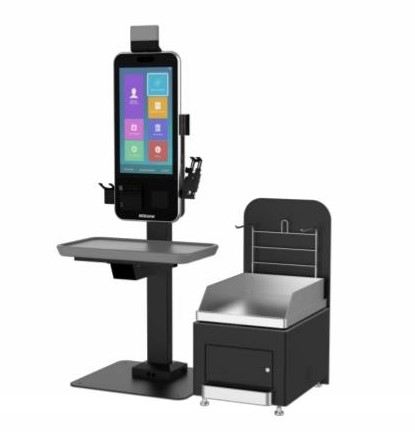

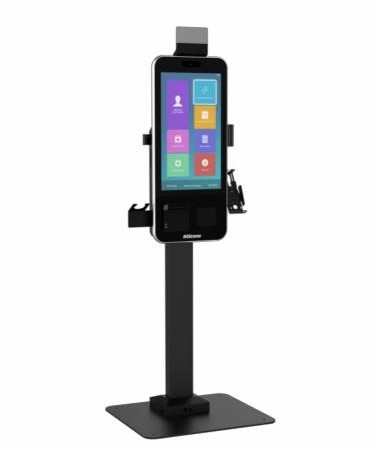

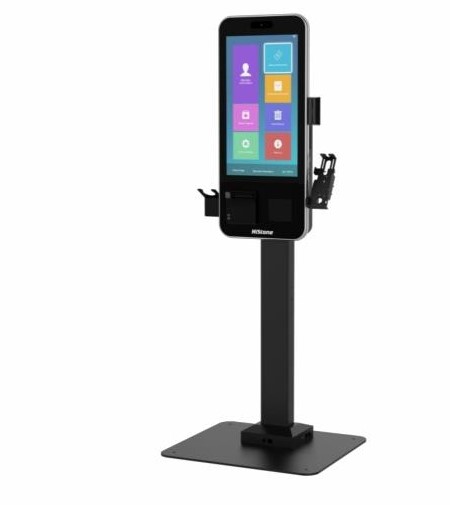

Flexible operational scenarios, wall mount or floor stand
Easy maintenance design for quick service
Integrated glass panel, ultra-thin body, and round aluminum alloy frame make the machine more beautiful and fashionable.

MODEL	HS330U
Processor	Intel Tiger Lake UP3 CPU : Core i3 11th generation Optional : Core i5 11th generation
Operating System	Windows 10 / Windows 11 / Linux
Memory	SO-DIMM DDR4 3200MHz 4GB, up to 16GB
Storage	2.5inch SATA SSD 128GB, up to 512GB M.2 drive 128GB, up to 512GB
Display Panel	23.8inch TFT-LCD / 16:9 / Display resolution: 1920*1080
Touch Screen	True flat capacitive touch screen
Power Supply	24V 120W power supply
Integrated Scanner	Single window, supports 1D/2D barcode Standard small scanner window type Optional big scanner window type
Integrated Printer	58/80mm thermal printer
Speaker	3W 4R Speaker
I/O Ports	1RJ45 10/100/1000M Gigabit LAN port 4USB 2.0 Ports 2USB 3.0 Ports 4Serial Ports
Optional Peripherals	Camera: Security camera, Face ID camera or Membership camera MIC: Optional Wireless Connection: Dual-band Wi-Fi® 802.11a/b/g/n/ac 2.4GHz/5GHz, BT5.0 Alarm light: Alarm light Number plate Card reader: MSR (only), MSR+RFID Stand: Ground Stand WallMount: Big Metal plate (optional for no grounding screws), Wall mount bracket (for no stand) Shelving Tray: Small shelving Tray (Metal/Plastic), Big shelving Tray (Metal/Plastic), Plastic bag holder (optional, below tray) Bracket: External EFTPOS holder, External Printer holder, Handheld scanner holder Security scale: 60kg security scale
Operating Voltage	110V/240V AC, 50-60Hz

MODEL	HS330U
Temperatures	Operating: 5ºC – 40ºC / 40%-60% RH non-condensing Storage: -5ºC – 50ºC / 30%-80% RH non-condensing
EMC and Safety	CE / FCC / RoHS
Colour	Black
